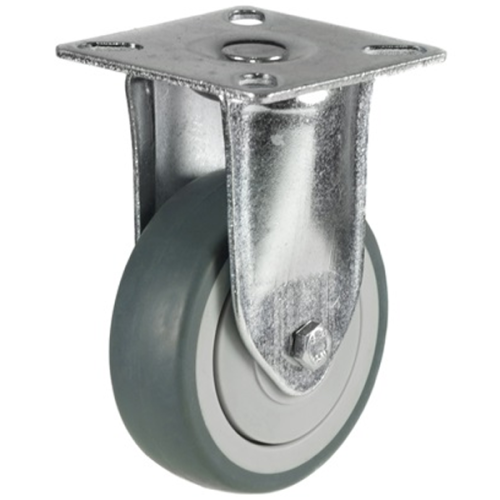

100mm Non-Marking Rubber Fixed Castor [80kg max load]

Price: £4.30 Ex VAT
(£5.16 including VAT)


Code: 100GD8GRG


Wheel Diameter Options (Please select from below):

Technical Information

Load Capacity (kg) 80kg
Load Capacity Per 4-Set (kg) 240kg
Overall Height 124mm
Wheel Diameter 100mm
Tread Width 24mm
Castor Type Fixed
Fitting Method Plate
Hole Size 8.5mm
Plate Size 65mm x 65mm
Hole Centres 45mm x 45mm
Bearing Type Plain
Bracket Material Pressed Steel
Wheel Material Non-Marking Rubber on Plastic
Wheel Colour Grey

The lower capacity model of the LWATPR-capped series with a ball bearing option can be used for light applications up to a load capacity of 240kg per set. Suitable for use indoors thanks to its non-marking grey rubber wheel these castors would be suitable for use within the public domain including schools, retail and hospitality. The in-built 'cap' seen on the wheel helps to prevent debris entering the bearing, ensuring smooth manoeuvrability whilst in use.
